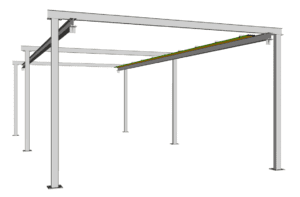

Underhung Free Standing Bridge Crane Runway

Underhung free standing bridge crane runway has the best overall hook coverage

Braces to other support structures are not needed because the free standing design resists lateral and longitudinal forces on its own

Easiest system to expand

Allows for loads to be transferred between bays

Features:

  • Bolt-together construction requires no certified welder.
  • Normally range from ½ to 15 Ton capacity.
  • Standard spans up to 55 feet.
  • Unlimited lengths available.
  • Accommodates transfer switches
  • Columns bolt to as small as a 6 inch concrete slab or reinforced concrete footer.
  • Motorized, hand chain, push type, and pneumatic powered bridge cranes available.
  • Standard systems are pre-engineered.
  • Ships complete with:
    • assembly manual
    • runway electrification
    • hardware
    • Chemical anchors are provided when foundations are not needed.
  • Computer aided design drawings supplied.
  • Designs are based on AISIC specifications.

Applications Include:

  • Die manipulation and repairs
  • Plastic molding
  • Steel fabrication
  • Handling material
  • Burn tables
  • Burial vault manufacturing
  • Concrete pipe and burrier manufacturing
  • Food grade stainless steel equipment available for food the pharmaceutical industries.

RunwayChartButtonImage2

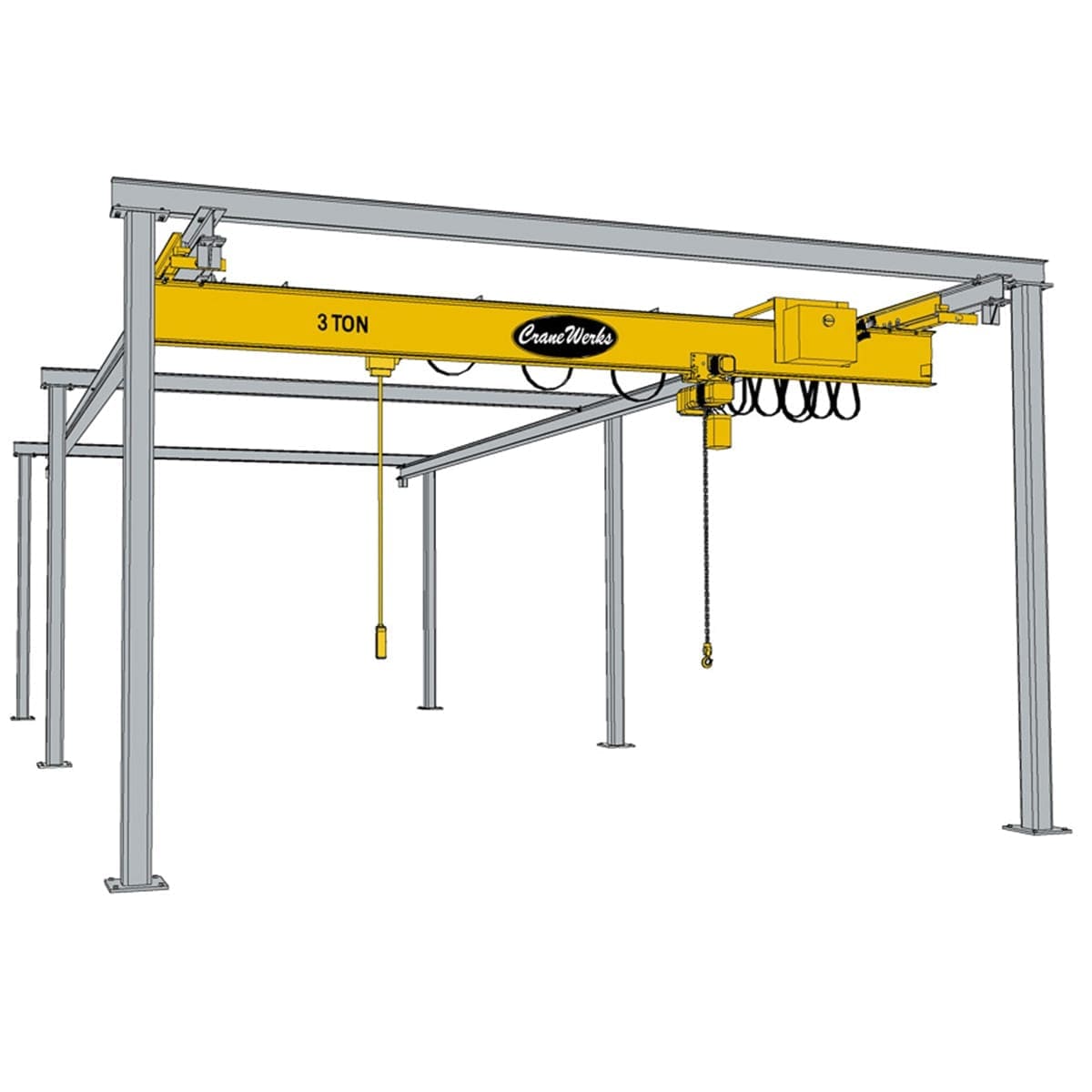

UnderHungFreeStandingPicture

Design Details
Underhung runway systems are designed to support the stand alone workstation bridge crane from the lower flange of the runway girder. These girders are commonly constructed from I or W flanged beams. Heavy duty patented track runways are available for high usage applications.  Patented track is fabricated with a hardened lower flange to resist wear. Both underhung runways and monorail spurs can use the same track; therefore, they can be interconnected as a cost effective means of transferring loads between building bays via transfer switches. Click here for more information on underhung bridge cranes with switches. By design, nothing inherent to the free standing system obstructs the path of the runway and extending the system is simple.

Downloadable CraneWerks Brochure
Downloadable Patented Track Brochure

Multiple Cranes Sharing the Same Runway

Many times the most practical use of a runway is to utilize it to support more than one overhead bridge crane. Large and uneven loads can often be lifted when this is a requirement with two similar or different capacity cranes. Also one runway can support multiple bridge cranes and service various work cells located along the length of a bays runway. In this case for example you could have a 10 Ton runway system and have 5 five Ton overhead bridge cranes running on the 10 Ton runway by creating zones within each cell that cranes can travel in but not travel out of.

Sophisticated load summing controls are available that will even monitor the loads of multiple cranes operating on a common runway. This is particularly useful when you need the added flexibility of using many bridge cranes and to protect your runways from overloads that could lead to unsafe usage by the crane operators.

Beside electronic limiting devices please feel free to inquire of our application engineers about many different standard and custom mechanical devices that are available to allow many overhead bridge cranes to be used safely on a single runway.

Load Summing Information

Bridge Cranes

All CraneWerks underhung stand alone workstation bridge crane structures accommodate both manual single girder, and motorized single girderbridge cranes.

CraneWerks Turnkey Systems

CraneWerks’ engineers provide engineering consultation, troubleshooting, and support from initial design through installation and follow-up. We offer pre-engineered, design build, and turnkey overhead bridge crane systems through our dealer network around the United States. CraneWerks’ systems can be customer installed, dealer installed, or installed nationwide by CraneWerks technicians.

Contact

For a CraneWerks quote on a free standing, underhung bridge crane system; please fill out one of our Request for Quote Forms.  To learn more about our complete lineup of industrial crane systems; or for answers to other questions, please call 888-544-2121 or contact us.

Quotes on all standard runway systems are available within twenty-four hours
