RY WIRE ROPE TROLLEY HOISTS

Designed for Safety, Reliability and Performance
Harrington ultra-low headroom trolley hoists have an H4 duty rating for high demand applications and come standard with VFD controls for ultimate lifting and lowering accuracy.
Request a Quote

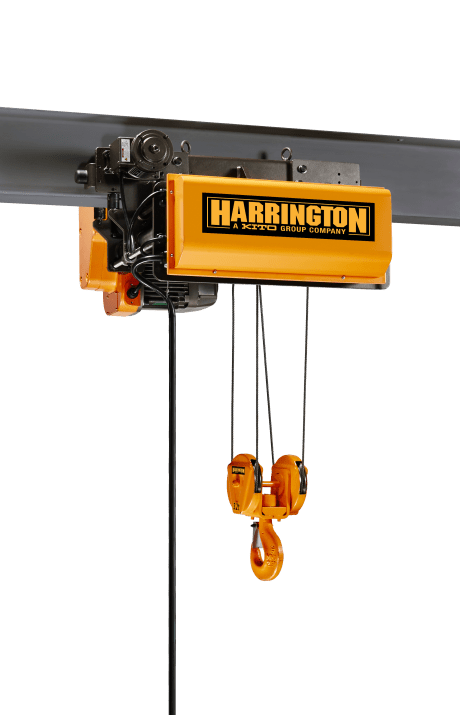

Harrington's RY Series Electric Wire Rope Hoists are designed for safety, reliability and performance. These ultra-low headroom trolley hoists have an H4 duty rating for high demand applications and standard configurations are certified and listed to UL 1340 “Standard for Hoists”

RY Hoist Design

CAPACITY ● 3-10 Ton COMPLIANCE ● NFPA 70 “National Electric Code” ● ASME B30.16, “Safety Standard – Overhead Hoists (Underhung)” ● ASME HST-4, “Performance Standard for Overhead Electric Wire Rope Hoists” ● RY hoists in standard configurations (including certain options) are certified to UL 1340 “Standard for Hoist”, CSA 22.2 No. 33 ROPE SYSTEM ● Premium Wire Rope (IWRC coated core) ● Full 360 ̊ rope guide ● Deep grooved rope drum VFD (Variable Frequency Drive) ● Soft start/stop minimizes load swing ● High and low speed adjustability ● Maximum speed ratio of 6:1 ● No-load high speed function
STANDARD VOLTAGE ● (208-230)-3-50/60 ● 460-3-50/60 CONTROL VOLTAGE ● 110V BRAKE ● Pull-rotor motor brake 3 & 5 Ton; Magnetic disc brake 7.5 & 10 Ton ● 5-year warranty MOTOR ● Totally enclosed fan cooled (TEFC) ● Class F insulation and ribbed frame for maximum cooling and durability ● IP55 rating OVERLOAD PROTECTION ● Electronic overload limiter OPERATING CONDITIONS ● Recommended for -4 ̊ to +104 ̊ F and humidity of 90% or less OPTIONS ● Pendant ● Power supply cord ● Flange extension kit

RY Hoist Features

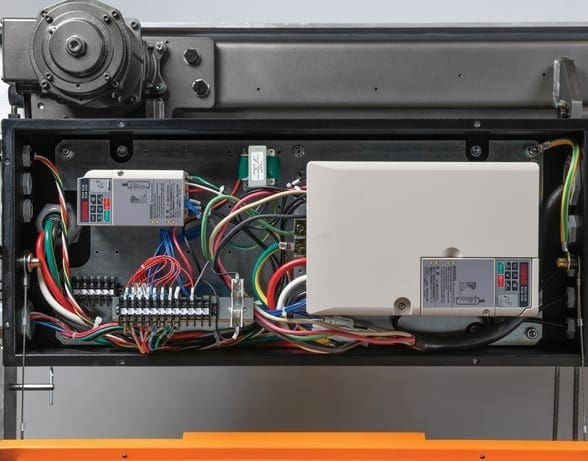

VFD Control

  The variable frequency drive provides a soft start/stop to minimize load swing, with adjustable high and low speeds.

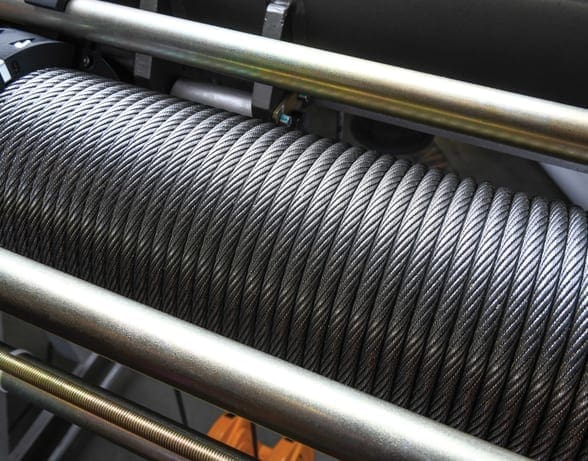

Premium Wire Rope

  Harrington's premium wire rope (IWRC, coated core) provides high resistance to fatigue and wear.

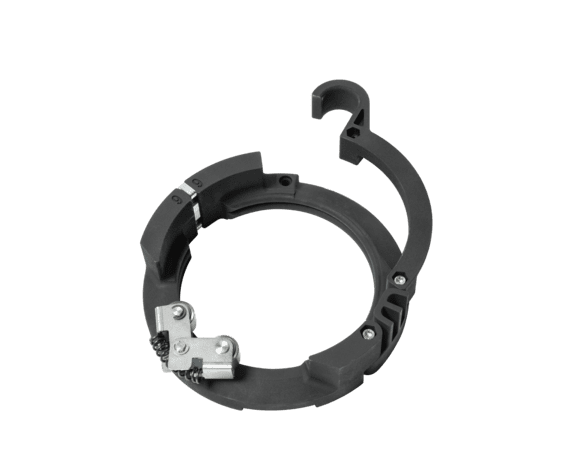

Full 360° Rope Guide

  Made of high strength polymer for durability, our rope guide keeps the rope securely in the groove on the drum.

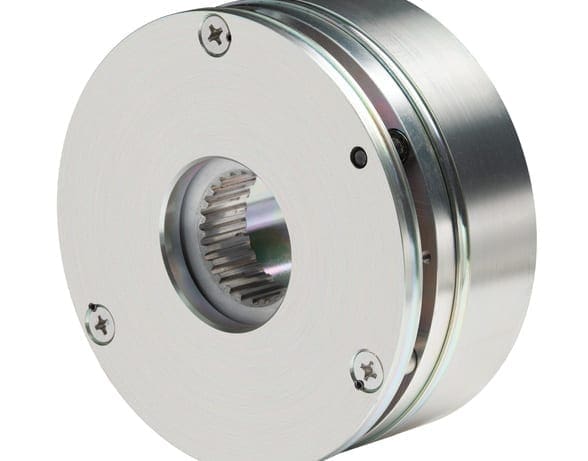

High Performance Motor Brakes

  The pull-rotor motor brake on 3 & 5 Ton models, and a magnetic disc brake on 7.5 and 10 Ton models. Both brakes provide reliable and safe operation and exceptional durability.
