Harrington Manual Hoists

(888) 544-2121

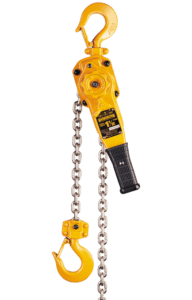

LB Heavy Duty Lever Hoist

Manual harrington

A Lightweight Hoist That’s Anything but a Lightweight Manual Harrington

The LB lever hoist forged an entirely new, industry-leading benchmark by being smaller, lighter, and stronger than any other lever hoist on the market. This hoist can be used horizontally, vertically, inverted, or at any other load angle and its proven strength and durability stand up in an endless array of applications.

CAPACITY

3/4 – 9 Ton

BODY

Rugged, high-impact, all-steel construction weighs less than comparable aluminum models
Compact and lightweight

HOOKS

Forged, heat-treated alloy steel hooks open gradually without fracturing under excessive load
Top and bottom hooks have heavy-duty hook latch
Top and bottom hooks rotate 360 degrees

OPERATION

Rubber grip handle for non-slip operation
Operate in close quarters with a short handle and 15-degree recovery stroke

GEARS

Highly durable, split-load double reduction gears
Induction heat-treated and case-hardened
Enclosed to protect from dust and moisture

LOAD CHAIN

Nickel-plated for corrosion resistance
Grade 100 heat-treated
Standard lift: 5′, 10′, 15′ or 20′

BRAKE

Weston-style load brake with four braking surfaces, two brake pads, and two brake pawls for added safety
The enclosed brake mechanism protects from dirt and moisture

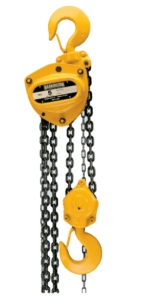

CB Hand Chain Hoist

Manual Harrington

Pull Your Weight – and Tons More

Harrington’s CB hand chain hoists combine heavy-duty construction with top-of-the-line internal components for the most demanding industrial applications. These hoists are built to withstand rugged, day-in, day-out use and they are easily maintained and repairable making them the perfect hoist for a long-lasting fleet of industrial products.

CAPACITY

1/2 -100 Ton

BODY

Heavy-duty, high-impact all steel construction
Rugged gear case and hand wheel cover
Compact design for low headroom and portability

OVERLOAD PROTECTION

Slip clutch device prevents the hoist from lifting damaging loads beyond rated capacity

LOAD CHAIN

Grade 100
Heat-treated, manganese alloy steel resists abrasion and wear
High-impact steel chain guide
Standard Lift: 10′ or 20′

GEARS

Double reduction gearing requiring very low effort to operate
Induction heat-treated and case-hardened
Enclosed to protect from dust and water

HOOKS

Forged, heat treated alloy steel hooks open gradually without fracturing under excessive load
Top and bottom hooks have heavy-duty hook latch

BRAKE

Double pawl springs for extremely reliable operation and instant brake activation
