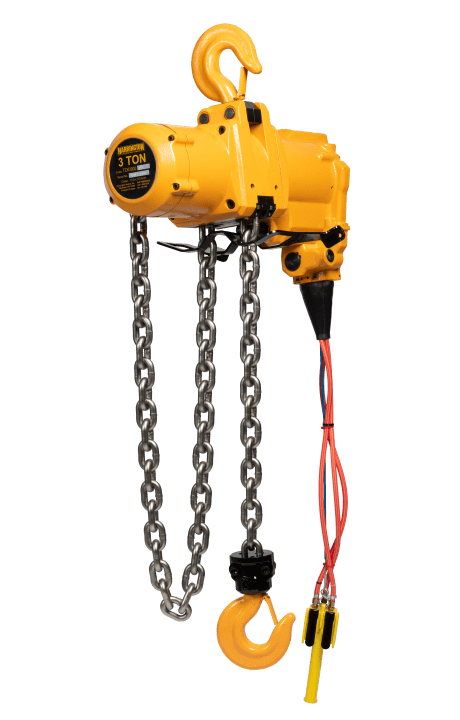

TCK AIR HOIST

Harrington Air Powered

With 100% duty rating, fine-feathering controls, and reduced noise levels, there’s no question the TCK will meet all your production needs. For low headroom and fast lifting in demanding industrial settings, these hoists will far exceed workplace demands.

FEATURES:

CAPACITY
  • 3 & 6 Ton
BODY
  • High-strength cast-iron housing stands up to the toughest demands
  • Powder coated finish
  • Proven weather resistant in harsh environments
LOAD CHAIN
  • Nickel plated, corrosion-resistant chain
  • Resistant to corrosion, abrasion and wear
AIR REQUIREMENTS
  • Air Supply: 60 – 90 psi
  • Air Filtration: Maximum 5 micron air filter or finer required
  • Air Inlet Port: 1″ NPT
  • Air Supply Hose: Minimum Size 3/4″
  • Air Lubrication: Minimum 10 – 15 drops of oil per minute (0.2 – 0.3 cc/min.)
OPERATION
  • Pendant and cord control
  • Outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
  • Comfortable noise levels during use
BRAKE
  • Fail-safe self-adjusting disc brake
  • Protected from harsh environments
MOTOR
  • Spring-loaded multi-vane
  • Variable speed control
OPERATING CONDITIONS
  • Temperature range +14° – 140°F
OPTIONS
  • Pendant or cord control
  • Canvas or steel chain container
  • Custom lift or pendant length

Request A Quote

TCL LUBE FREE AIR HOIST

FEATURES:

CAPACITY
  • 1/4 – 6 Ton
LOAD CHAIN
  • Nickel-plated
  • Resistant to corrosion, abrasion and wear
FEATURES 1/4 – 1 TON
  • Extremely compact & lightweight
  • Cast aluminum body allows for easy operation, transportation and storage
  • External speed adjustment screw doesn’t need special tools to set specific speeds
  • Adjustable lifting and lowering speeds increases production capabilities
  • Heavy-duty disc motor brake system for reliable load support
FEATURES 3 – 6 TON
  • Adjustable overload limiter detects overload automatically and blocks air flow for lifting
  • Cast iron housing for strength and durability
  • Powder coated finish proven weather resistant in harsh environments
  • Internal disc brake protected from harsh environments
AIR REQUIREMENTS
  • Air Supply: 60 – 90 psi
  • Air Filtration: Maximum 5 micron air filter or finer required
  • Air Inlet Port: 1/4-1 Tons — 1/2″ NPT; 3-6 Tons — 1″ NPT
  • Air Supply Hose Minimum Size: 1/4-1 Tons — 1/2″; 3-6 Tons — 3/4″
OPERATION
  • Pendant and cord control
  • Outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
  • Comfortable noise levels during use
  • Lubrication free
  • Unlimited duty cycle
MOTOR
  • Spring-loaded multi-vane for fine feathering control
OPERATING CONDITIONS
  • Temperature range +14° – 140°F
OPTIONS
  • Pendant or cord control
  • Canvas or steel chain container
  • Custom lift or pendant length

Request A Quote

TCR LARGE CAPACITY AIR HOIST

FEATURES:

CAPACITY
  • 10 & 25 Ton
BODY
  • High-strength cast iron housing for proven weather resistance and durability in harsh environments
  • Airtight for efficient use of air
AIR REQUIREMENTS
  • Air Supply:170 – 220 cfm at 60 – 90 psi
  • Air Lubrication: Minimum 10 – 15 drops of oil per minute (0.2 – 0.3 cc/min.)
  • Air Filtration: Maximum 5 micron air filter or finer required
  • Air Inlet Port: 1″ NPT
  • Air Supply Hose Minimum Size: 1″
OPERATION
  • Pendant or cord
  • Provides outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
  • Comfortable noise levels
OPERATING CONDITIONS
  • Temperature range +14° to 140ºF
  • Humidity 85% or less
BRAKE
  • Heavy-duty, self-adjusting brake
  • Precise braking action
MOTOR
  • Spring-loaded multi-vane design for fine feathering control
OVERLOAD PROTECTION
  • Adjustable load limiter detects overload automatically and blocks air flow for lifting
  • Standard upper & lower limit stops prevent over-travel of hook in either direction
OPTIONS
  • Pendant or cord control
  • Canvas or steel chain container
  • Custom lift or pendant length

Request A Quote

TCW LUBE FREE AND WASH DOWN HOIST

FEATURES:

CAPACITY
  • 1/2 & 1 Ton
BODY
  • Cast aluminum body is compact and lightweight
  • Unpainted
  • Stainless steel and bright chromate coated components
  • Gear box and chain lubricants comply with FDA standards
CONTROLS
  • Available with pendant or cord control
  • Very fine feathering movements, both up and down, even at low speeds
LOAD CHAIN
  • Nickel-plated
  • Resistant to corrosion, abrasion and wear
AIR REQUIREMENTS
  • Air Supply Requirement: – 60 – 90 psi
  • Air Filtration: – Maximum 5 micron air filter or finer required
  • Air Inlet Port: – 1/2″ NPT
  • Air Supply Hose Minimum Size: – 1/2″
OPERATION
  • Pendant and cord control
  • Outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
  • Comfortable noise levels during use
  • Lubrication free
BRAKE
  • Heavy-duty disc brake motor system
MOTOR
  • Spring-loaded multi-vane for fine feathering control
OPERATING CONDITIONS
  • Temperature range +14° – 140°F
OPTIONS
  • Pendant or cord control
  • Canvas or steel chain container
  • Stainless steel load chain
  • Custom lift or pendant length

AH MINI CAT AIR HOIST

FEATURES:

CAPACITY
  • 250 – 500 lb
BODY
  • Lightweight body allows for easy transportation
  • Airtight hoist for efficient use of air
LOAD CHAIN
  • Ultra-strong high performance nickel-plated load chain
  • Resistant to corrosion, abrasion and wear
AIR REQUIREMENTS
  • Air Supply: 19 – 34 cfm at 60 – 90 psi
  • Air Lubrication: Minimum 10 to 15 drops of oil per minute (0.2 – 0.3 cc/min.)
  • Air Filtration: Maximum 5 micron air filter or finer required
  • Air Inlet Port: 3/8″ NPT
  • Air Supply Hose Minimum Size: 3/8″
OPERATION
  • Pendant or cord control
  • Extremely fast lifting for applications where speed is critical
  • Comfortable noise levels during use
BRAKE
  • Disc motor brake system for reliable load support
MOTOR
  • Spring-loaded multi-vane motor
OPERATING CONDITIONS
  • Temperature Range +14° – 140°F
OPTIONS
  • ET mini trolley
  • Pendant or cord control
  • Plastic chain container

MCL AIR TROLLEY

FEATURES:

CAPACITY
  • 1/4 – 6 Ton
OPERATION
  • Pendant control
  • Lubrication free
  • Trolley muffler produces low noise levels
OPERATING CONDITIONS
  • Temperature range +14° to 140°F
  • Humidity 85% or less
AIR REQUIREMENTS
  • Air Supply: 53 cfm at 60 – 90 psi
  • Air Lubrication: Minimum 10 to 15 drops of oil per minute (0.2 – 0.3 cc/min.)
  • Air Filtration: Maximum 5 micron air filter or finer required
  • Air Inlet Port: 3/4″ NPT
  • Air Supply Hose Minimum Size: 1/4 – 2 Ton 1/2″; 3 – 6 Ton 3/4″
FEATURES
  • Drop stops & rubber bumpers to ensure safe operation
  • Side guide rollers provide additional stability and smooth travel
  • Versatile wheels fit flat or tapered beam flange
  • 4 button pendant and cord set for control of TCL and MCL combination
OPTIONS
  • Longer pendant lengths
  • Extended flange ranges
  • Filter/regulator/lubricator kits

TCRM AIR TROLLEY HOIST

CAPACITY
  • 1/4 – 2 Ton
BODY
  • High strength cast iron housing proven weather resistant and durable in harsh environments
  • Airtight hoist results in efficient use of air
OPERATION
  • Pendant Control
  • Comfortable noise levels
OPERATING CONDITIONS
  • Temperature range +14° to 140°F
  • Humidity 85% or less
AIR REQUIREMENTS
  • Air Supply: 53 cfm at 60 – 90 psi
  • Air Lubrication: Minimum 10 to 15 drops of oil per minute (0.2 – 0.3 cc/min.)
  • Air Filtration: Maximum 5 micron air filter or finer required
  • Air Inlet Port: 3/4″ NPT
  • Air Supply Hose Minimum Size: 1/2″
MOTOR
  • Spring-loaded vane motor and pilot air control provide extremely fine feathering ability
BRAKE
  • Enclosed heavy-duty disc brake provides reliable braking action
OVERLOAD PROTECTION
  • Adjustable load limiter detects overload automatically and blocks air flow for lifting
  • Standard upper & lower limit stops prevent over-travel of hook in either direction
TROLLEY FEATURES
  • Drop stops & rubber bumpers to ensure safe operation
  • Side guide rollers provide additional stability and smooth travel
  • Versatile wheels fit flat or tapered beam flange
OPTIONS
  • Longer lift or pendant lengths

TCKM AIR TROLLEY HOIST

CAPACITY
  • 3 & 6 Ton
BODY
  • Cast iron housing for strength and durability
  • Powder coated finish proven weather resistant in harsh environments
LOAD CHAIN
  • Nickel-plated load chain
  • Resistant to corrosion, abrasion and wear
OPERATION
  • Pendant control
  • Unlimited duty cycle for continuous operation
  • Trolley muffler produces low noise levels for operator comfort
OPERATING CONDITIONS
  • Temperature range +14° to 140°F
  • Humidity 85% or less
AIR REQUIREMENTS
  • Air Supply: 53 cfm at 60 – 90 psi
  • Air Filtration: Maximum 5 micron air filter or finer required
  • Air Inlet Port: 3/4″ NPT
  • Air Supply Hose Minimum Size: 3/4″
  • Air Lubrication: Minimum 10 to 15 drops of oil per minute (0.2 – 0.3 cc/min.)
MOTOR
  • Spring-loaded multi-vane motor design permits smooth operation
BRAKE
  • Internal disc brake protected from harsh environments
TROLLEY FEATURES
  • Drop stops
  • Rubber bumpers
  • Side guide rollers
  • Versatile Wheels
OPTIONS
  • Longer lift or pendant lengths

TCLM AIR POWERED TROLLEY

CAPACITY
  • 1/4 – 6 Ton
LOAD CHAIN
  • Nickel-plated resistant to corrosion abrasion and wear
FEATURES 1/4 – 1 TON
  • Extremely compact & lightweight
  • Cast aluminum body allows for easy operation, transportation and storage
  • External speed adjustment screw doesn’t need specific tools to set specific speeds
  • Adjustable lifting and lowering speeds increases production capabilities
  • Heavy-duty disc motor brake system for reliable load support
FEATURES 3 – 6 TON
  • Cast iron housing for strength and durability
  • Powder coated finish proven weather resistant in harsh environments
  • Internal disc brake protected from harsh environments
AIR REQUIREMENTS
  • Air Supply: 53 cfm at 60 – 90 psi
  • Air Filtration: Maximum 5 micron air filter or finer required
  • Air Inlet Port: 3/4″ NPT
  • Air Supply Hose Minimum Size: 1/4-2 Tons — 1/2″; 3-6 Tons — 3/4″
OPERATION
  • Pendant control
  • Outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
  • Comfortable noise levels during use
  • Lubrication free
  • Unlimited duty cycle
MOTOR
  • Spring-loaded multi-vane for fine feathering control
OPERATING CONDITIONS
  • Temperature range +14° – 140°F
OPTIONS
  • Custom lift or pendant length
  • Canvas chain container

TCKP AIR TROLLEY HOIST

CAPACITY
  • 3 & 6 Ton
BODY
  • High-strength cast-iron housing stands up to the toughest demands
  • Powder coated finish
  • Proven weather resistant in harsh environments
LOAD CHAIN
  • Nickel plated, corrosion-resistant chain
  • Resistant to corrosion, abrasion and wear
AIR REQUIREMENTS
  • Air Supply: 60 – 90 psi
  • Air Filtration: Maximum 5 micron air filter or finer required
  • Air Inlet Port: 1″ NPT
  • Air Supply Hose: Minimum Size 3/4″
  • Air Lubrication: Minimum 10 – 15 drops of oil per minute (0.2 – 0.3 cc/min.)
OPERATION
  • Pendant and cord control
  • Outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
  • Comfortable noise levels during use
BRAKE
  • Fail-safe self-adjusting disc brake
  • Protected from harsh environments
MOTOR
  • Spring-loaded multi-vane
  • Variable speed control
WHEELS
  • All steel
  • Sealed ball bearings
  • Fit flat or tapered beam flange
SHAFTS
  • Standard shafts fit wide range of beams
  • Spacers for easy adjustments
OPERATING CONDITIONS
  • Temperature range +14° – 140°F
OPTIONS
  • Custom lift or pendant length
  • Longer shafts available for larger beams

TCLP PUSH TROLLEY HOIST

CAPACITY
  • 1/4 – 6 Ton
LOAD CHAIN
  • Nickel-plated resistant to corrosion, abrasion and wear
FEATURES 1/4 – 1 TON
  • Extremely compact & lightweight
  • Cast aluminum body allows for easy operation, transportation and storage
  • External speed adjustment screw doesn’t need special tools to set specific speeds
  • Adjustable lifting and lowering speeds increases production capabilities
  • Heavy-duty disc motor brake system for reliable load support
FEATURES 3 – 6 TON
  • Adjustable overload limiter detects overload automatically and blocks air flow for lifting
  • Cast iron housing for strength and durability
  • Powder coated finish proven weather resistant in harsh environments
  • Internal disc brake protected from harsh environments
AIR REQUIREMENTS
  • Air Supply: 60 – 90 psi
  • Air Filtration: Maximum 5 micron air filter or finer required
  • Air Inlet Port: 1/4-1 Tons — 1/2″ NPT; 3-6 Tons — 1″ NPT
  • Air Supply Hose Minimum Size: 1/4-1 Tons — 1/2″; 3-6 Tons — 3/4″
OPERATION
  • Pendant or cord control
  • Outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
  • Comfortable noise levels during use
  • Lubrication free
  • Unlimited duty cycle
MOTOR
  • Spring-loaded multi-vane for fine feathering control
WHEELS
  • All steel
  • Sealed ball bearings
  • Fit flat or tapered beam flange
SHAFTS
  • Standard shafts fit wide range of beams
  • Spacers for easy adjustments
OPERATING CONDITIONS
  • Temperature range +14° – 140°F
OPTIONS
  • Custom lift or pendant length
  • Canvas chain container

ET MINI TROLLEY HOIST

CAPACITY
  • 525 lbs
BODY
  • Frame is stamped steel with integrated drop stops
  • Get strength and rigidity from a lightweight, compact design
WHEELS
  • Composite material for quiet operation and reduced rolling resistance
BEARINGS
  • Maintenance-free sealed bearings increase reliability and reduce required pull force
OPERATION
  • Fits all ED series electric chain hoists up to 525 lbs
  • Fits all AH Mini Cat air hoists

TCKG AIR TROLLEY HOIST

CAPACITY
  • 3 & 6 Ton
BODY
  • High-strength cast-iron housing stands up to the toughest demands
  • Powder coated finish
  • Proven weather resistant in harsh environments
CONTROLS
  • Available with pendant or cord control
  • Very fine feathering movements both up and down, even at low speeds
LOAD CHAIN
  • Nickel plated, corrosion-resistant chain
  • Resistant to abrasion, abrasion and wear
AIR REQUIREMENTS
  • Air Supply: 60 – 90 psi
  • Air Filtration: Maximum 5 micron air filter or finer required
  • Air Inlet Port: 1″ NPT
  • Air Supply Hose: Minimum Size 3/4″
  • Air Lubrication: Minimum 10 – 15 drops of oil per minute (0.2 – 0.3 cc/min.)
OPERATION
  • Pendant and cord control
  • Outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
  • Comfortable noise levels during use
BRAKE
  • Fail-safe Self-Adjusting Disc Brake
  • Protected from harsh environments
MOTOR
  • Spring-loaded multi-vane
  • Variable speed control
WHEELS
  • All steel
  • Sealed ball bearings
  • Fit flat or tapered beam flange
SHAFTS
  • Shafts
  • Standard shafts fit wide range of beams
  • Longer shafts available for larger beams
  • Spacers for easy adjustments
OPERATING CONDITIONS
  • Temperature range +14° – 140°F
OPTIONS
  • Custom lift or pendant length
