Ceiling-Mounted Enclosed Track Workstation Crane Runway

For ceiling-mounted enclosed track cranes, it is imperative that you seek professional advice on whether your building structure is capable of withstanding the forces generated by the workstation crane.

Enclosed track systems are a great option for:

  • Retaining open floor space and layout flexibility
  • Where ergonomic, controlled and fast
    material transfer is important
  • Capacities of 150 lbs. up to 4,000 lbs.
Request a Quote
Ceiling-Mounted Workstation Crane by CraneWerks, Inc.
  • Individual work cells
  • Manufacturing areas
  • Assembly operations
  • Machine cells
  • Packaging areas
  • Equipment maintenance centers
  • Repair and maintenance bays
  • Bag handling

  • 34 ft. maximum spans
  • Maximum runway lengths 124 ft.
  • Ideal for use in areas with limited floor space.
  • Light weight enclosed rail design enables the system to be up to 3 times easier to move than a standard crane system.
  • Low track weight reduces the applied forces exerted on the supporting structure.
  • Dust and other airborne contaminants are prevented from collecting on the runway and reducing wear on the trolley wheels through the enclosed track design.
  • Modular design allows runways to be extended to any length.
  • Consistent ease of operation over the full range of movement.
  • Enclosed rail workstation cranes are usually push type; motor driven tractors.
  • Sway bracing is available as an option.
  • Stainless steel systems are available in enclosed rail up to 500 lbs. Stainless steel systems are available in larger capacities. Click here for more information.
  • Complete systems designed in accordance with AISIC specifications.

CraneWerks designs and manufacturers ceiling-mounted enclosed track super structures that can mount to almost any ceiling and are designed to support these systems:

  • CM Load Rail
  • Gorbel
  • Kundel
  • Demag-KBK
  • Knight
  • SPANCO
  • Zimmerman

See our standard ceiling-mounted crane systems.

Design Details of a Ceiling-Mounted Enclosed Track System

In a ceiling-mounted enclosed track system, tight work space and production areas remain unobstructed by support columns as required in freestanding crane systems.

Ceiling-mounted enclosed track systems are lighter in weight than a standard ceiling mounted bridge crane system so they add less crane weight to the building structure.

  • Still, adequate overhead structure is needed to support the load of the crane.
  • A qualified CraneWerks’ engineer can provide consulting assistance to determine whether a building structure will support the enclosed rail ceiling mounted workstation bridge crane system.

All ceiling-mounted enclosed track systems are pre-engineered so that they are available for quicker shipping. Each system comes with complete a drawing and ships with all mounting and connection hardware. The crane systems are labeled and include simple installation instructions for on-site, bolt together, easy assembly. These workstation crane systems have a span of 34 feet or shorter. Support spacing is typically 6, 20, 25, or 30 feet. These enclosed track systems are commonly used with an air balancer, air hoist, electric chain hoist or vacuum lifter.

Cranes

Motor driven workstation cranes are available and will work well with a ceiling-mounted enclosed track system. These cranes are powered by tugger tractors that mount to the bottom of the runway on a separate trolley and are connected to the bridge with a connecting bar. Tractors utilize a hard rubber tire that rolls along the bottom of the runway track.

Manual cranes that are pushed or pulled are most common and best suited for use with these systems. If a powered system is required considerations may be made to use a standard I-beam crane and runway system as a more economical solution.

CraneWerks Manufacturer and Supplier

CraneWerks is committed to partnering with our customers on workstation crane systems and components that best meet their needs and applications. We not only manufacture an original line of industrial crane systems and supplies systems, but we also offer parts and service for several models of ceiling-mounted enclosed track crane systems including Met-Track, Gorbel, Spanco, and Kundel.

MET-TRACK

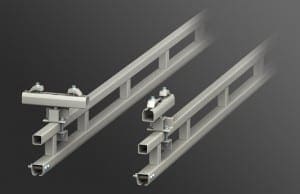

The MET-TRACK pre-engineered modular ceiling-mounted enclosed track design allows for easy relocation and/or expansion by simply adding runway sections and/or additional bridges.

Splice joints connect the track sections and are complete with vertical and horizontal adjustment screws, facilitating precise alignment of the track sections.

Met-Track Workstation Cranes Brochure

  • Kit form
  • Low cost
  • Simple to install and extend
  • Large range of mounting options
  • Mixed capacity systems
  • Bridge buffers
  • Telescopic bridges
  • Cantilever bridges
  • Motorized tractor units
  • Track transfer units

Gorbel

Gorbel’s ceiling-mounted enclosed track workstation bridge cranes are among the top in ease of installation and versatility to apply. They are available in steel, aluminum and stainless steel.

Gorbel Ceiling-Mounted Enclosed Track Workstation Brochure

  • A greater degree of flexibility in crane layout due to a Trussed Steel Track (used for longer spans up to 30 feet).
  • For runway spans up to 20 feet, Aluminum Track is used. This is applicable where lower weight and easier movement are required.

SPANCO

SPANCO manufactures ceiling-mounted enclosed track workstation cranes that meet design requirements for installation and use in seismic zone 4 (assuming that the building structure from which it is hung also meets the same requirements), classified by the Uniform Building Code as the worst earthquake prone areas in North America.

SPANCO Ceiling-Mounted Enclosed Track Workstation Bridge Crane Brochure

  • Telescoping bridges provide extended reach to areas beyond a column or under mezzanines, shelving or a neighboring workstation.
  • If you need coverage of a wider area, cantilevered bridges can be cantilevered on one or both ends of the crane bridge. (This is beyond the standard 12 in. overhang.)

Kundel

If you are looking for custom, economical ceiling-mounted enclosed track crane systems, Kundel is the answer.

Kundel Freestanding and Ceiling-Mounted Enclosed Track Workstation Crane Brochure

  • An internal electrical bar
  • Raised bridge ends for low headroom applications
  • Obstruction free workstations by integrating pre-existing structures in a facility with beam hangars and wall hangars.
  • Cantilever posts with built in leveling adjustments. When standard header braced systems interfere with operations, cantilevered runway designs are used.

A data sheet giving details on the applied forces relative to a crane system is available, please contact your dealer for further information.
