Electrolift WIRE ROPE HOISTS

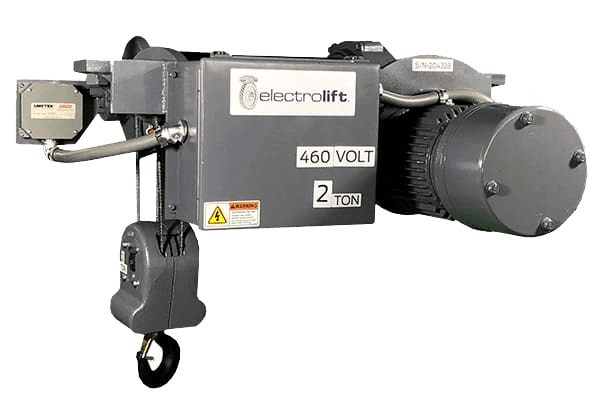

Electrolift Lug Mounted Single Hook Hoists

Electrolift
Electrolift
  • Used for fixed placement applications
  • Can be bolted to a ceiling, or beam at any fixed point
  • Standard capacities available up to 20,000 lbs.
  • See catalog for available lift speeds

Electrolift lug mounted hoists can easily be adapted to use many manufacturer’s trolleys, such as:

  • Cleveland Tramrail
  • Louden
  • TC American
  • Trambeam

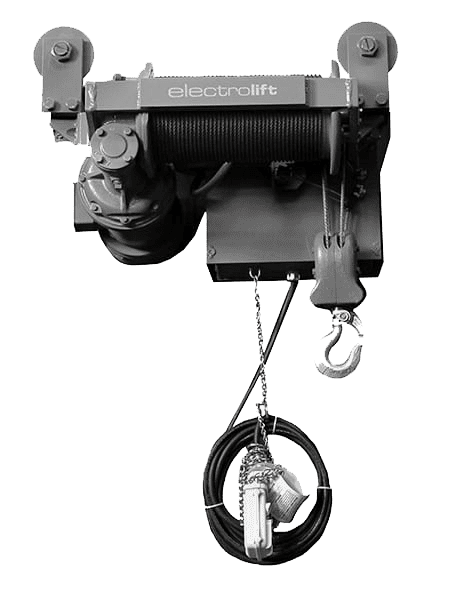

Idler Trolley Single Hook Hoists

Electrolift
      • Ideal for low capacity applications where motorized horizontal movement is not required
      • Standard capacities available up to 20,000 lbs
      • See catalog for available lift speeds
      • Engineered for use on S-beams, W-beams, or patented tracks
      • Ideal for bridge cranes, monorail tracks, jib, gantry, or cantilever applications
      • Can be used to negotiate monorails with curved tracks
      • Optional trolley wheel material: Hardened Steel, Bronze, or Stainless steel

      When a monorail system has a radius present and motorized horizontal movement is required, the Electrolift Plain Trolley hoist can be mated to a tractor drive

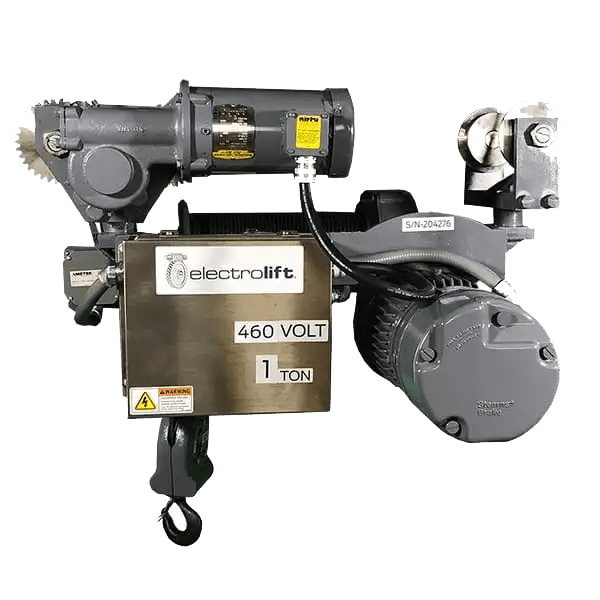

Motor Driven Trolley Single Hook Hoists

    • Most popular single hook configuration
    • Powered horizontal movement
    • Ideal for monorails, bridge beams, gantry and jib cranes
    • Standard capacities available up to 20,000 lbs.
    • See catalog for available lift speeds
    • Trolley speeds typically available: 14 fpm – 141 fpm
    • Contact sales department for trolley speed ranges available for each specific capacity.
    • Trolley brake available
    • Optional trolley wheel material: Hardened Steel, Bronze, or Stainless steel

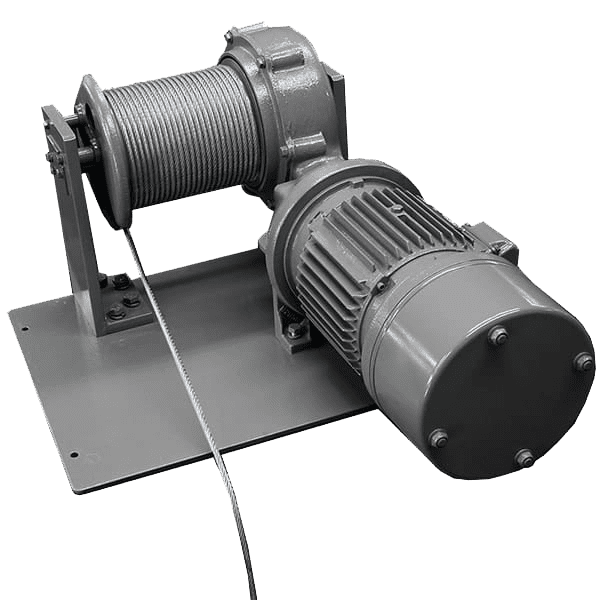

Base Mounted Single Hook Hoists

Electrolift
      • Convenient installation with heavy steel base plate
      • Stationary mounted installations
      • Can be used in pulling applications
      • Used with remote hook blocks and sheaves when the hoist can not be located directly above the load
      • Generic, all-purpose utility hoist
      • Capacities available up to 20,000 lbs.
      • See catalog for available speeds

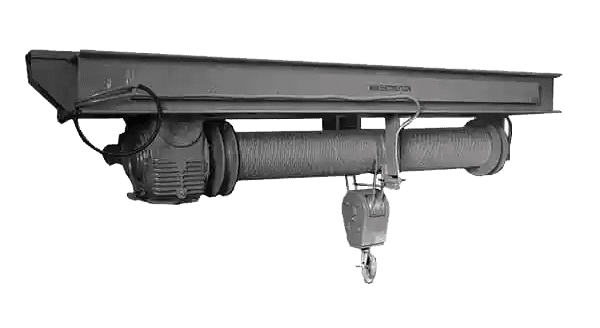

      Vertically mounted hoist with remote sheave assemblies

      • Versatile mounting configurations
      • Horizontal or vertical mounting available
      • Can be easily modified to have a channel frame
      • True vertical lift available
      • Various reeving configurations and lifts are available

Base Mounted Single Hook Hoists

    • Features:

          • Hook stays centered below the middle of the drum
          • No hook block drift
          • Standard capacities available up to 20,000 lbs.
          • Available in lug mounted, idler trolley, or motor-driven trolley configurations
          • Optional trolley wheel material: Hardened Steel, Bronze, or Stainless steel

Base Mounted Single Hook Hoists

      • Hoists configured for minimal headroom requirements
      • Headroom is defined as the distance from the tread
        of the track to the palm of the hook
      • Standard capacities available up to 15,000 lbs.
      • Available as idler trolley or motor-driven trolley configurations

      The following standard configurations are available:

      • Capacity up to 6000 lbs., 14-7/16″ headroom
      • Capacity up to 10,000 lbs., 24″ headroom
      • Capacity up to 15,000 lbs., 24″ headroom
